发布时间：2024-05-15

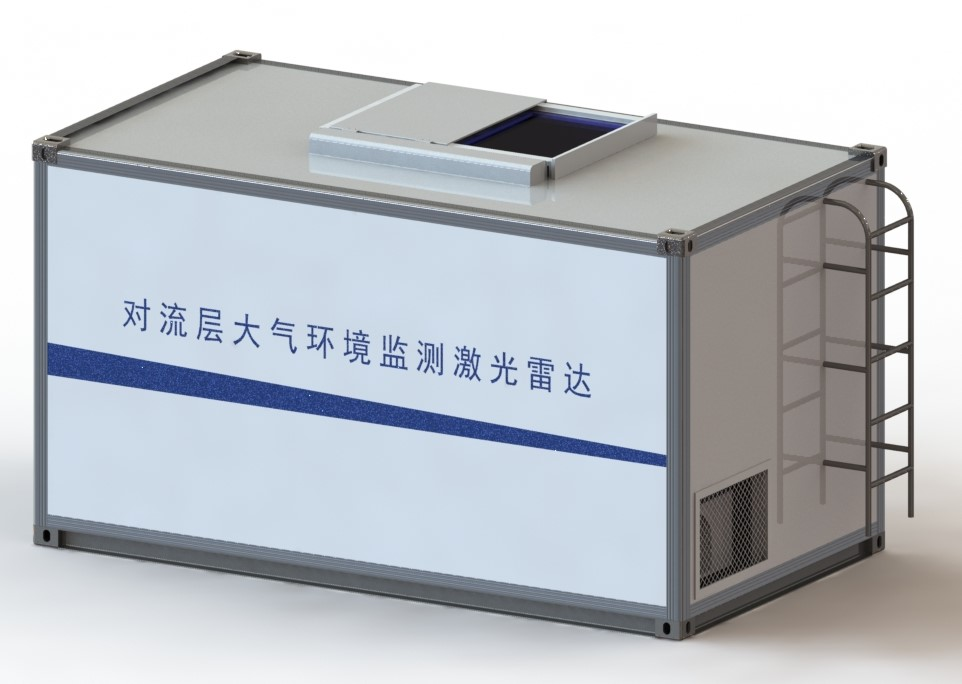

Model: LR2000
The tropospheric atmospheric environment monitoring LiDAR adopts the principle of Raman and meter scattering technology to measure the atmospheric aerosol extinction coefficient profile, temperature profile, water vapor profile, atmospheric boundary layer height, cloud height, cloud thickness, atmospheric horizontal visibility, atmospheric vertical visibility and other meteorological and environmental factors.
Product features:
High measurement accuracy
High stability
Low detection blind area
all-sky detection
Application field:
Atmospheric environment monitoring
Scientific research experiment
Military, aviation and space meteorological support
Haze and aerosol monitoring
Performance parameters:
序号 | 技术指标项 | 技术指标参数 |
1 | 气溶胶消光系数廓线 | 测量精度：±10%与±0.05km-1中的高值 |
2 | 温度廓线 | 测量精度：±1℃ |
3 | 水汽廓线 | 测量精度：±5%RH与±0.5g/kg中的高值 |
4 | 其它输出 | 大气边界层高度； 云高、云厚； 大气水平能见度； 大气垂直能见度 |
5 | 测量高度范围 | 12m～10000m |
6 | 空间分辨率 | 12m～3000m：6m； 3000m～6000m：24m； 6000m～10000m：96m； |
7 | 输出时间分辨率 | 1min |

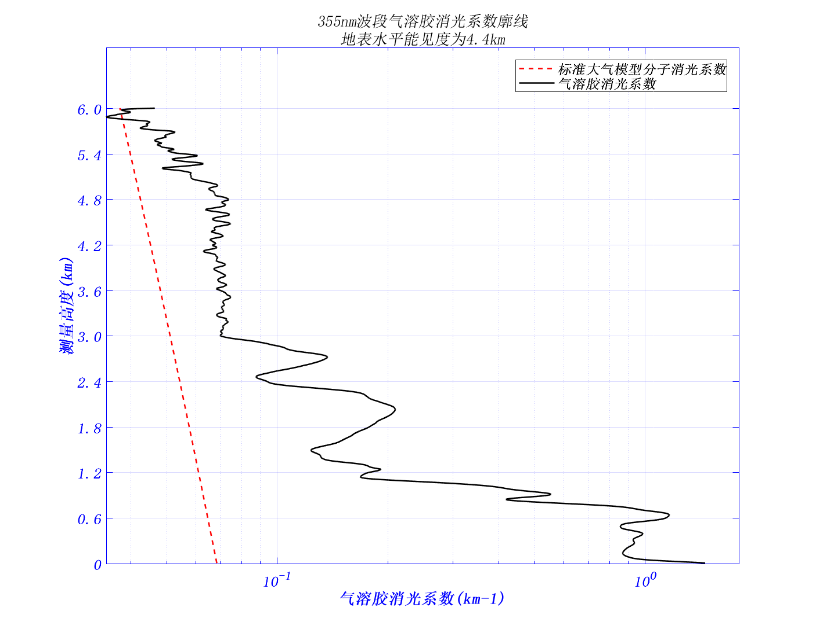

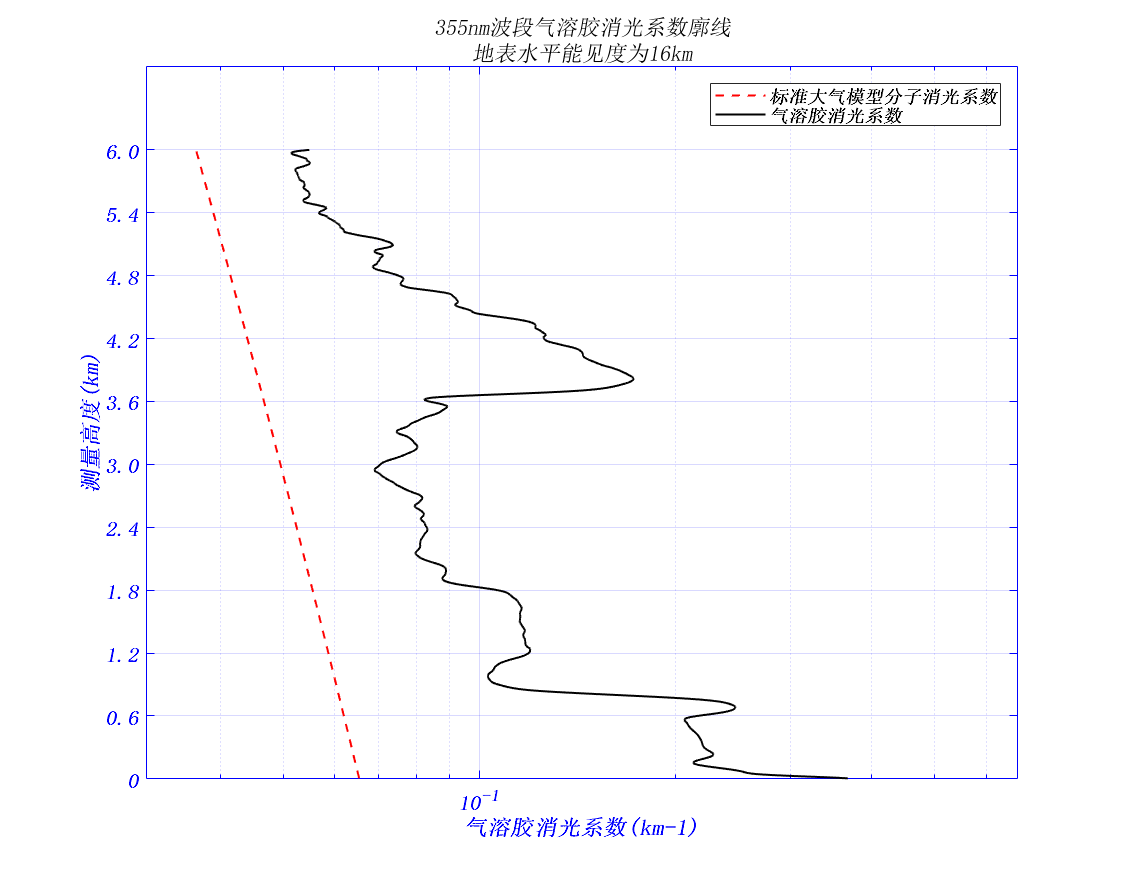

The measurement results of atmospheric aerosol extinction coefficient profile show:
Fine weather
Foggy weather

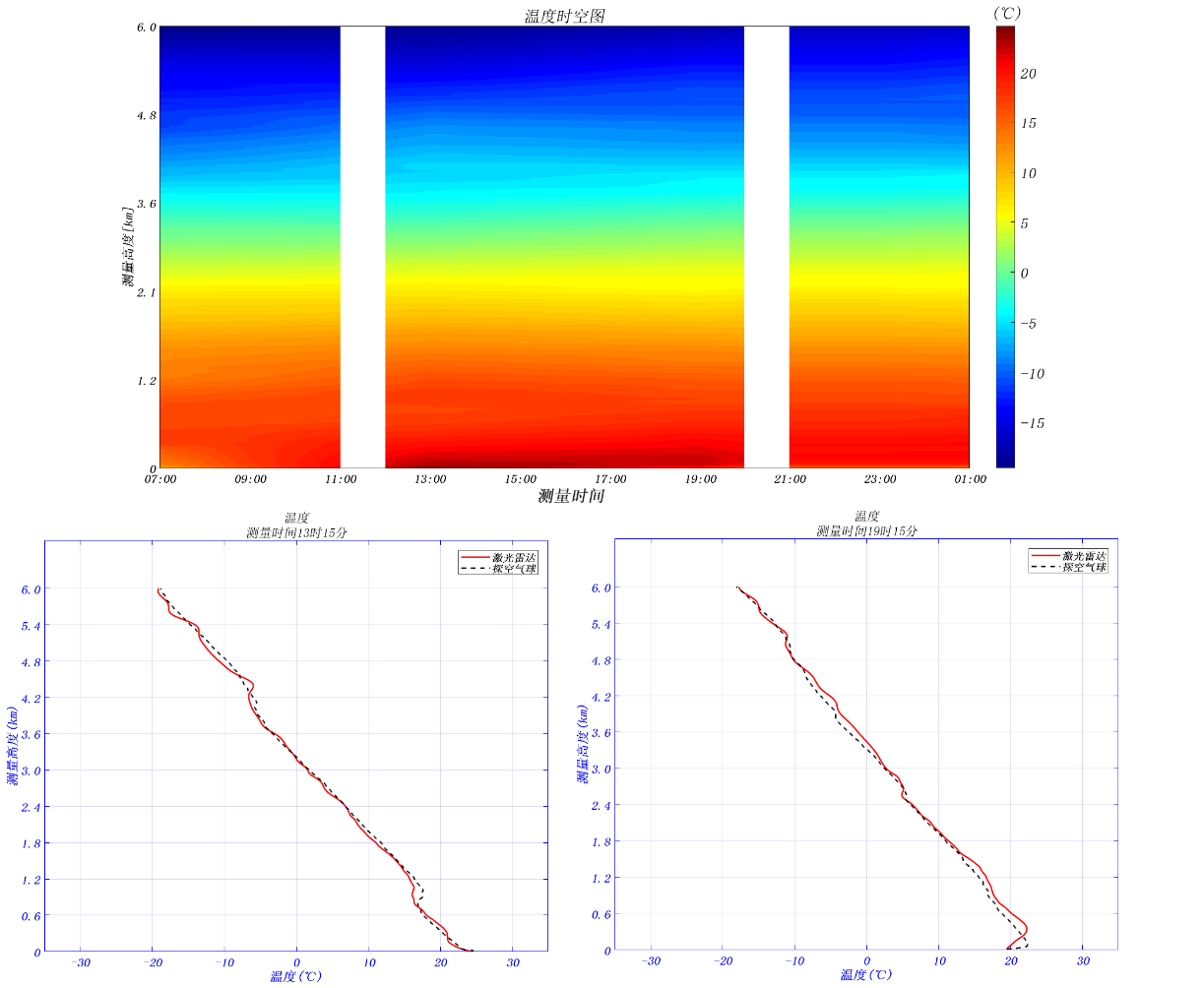

Atmospheric temperature profile measurement results show:

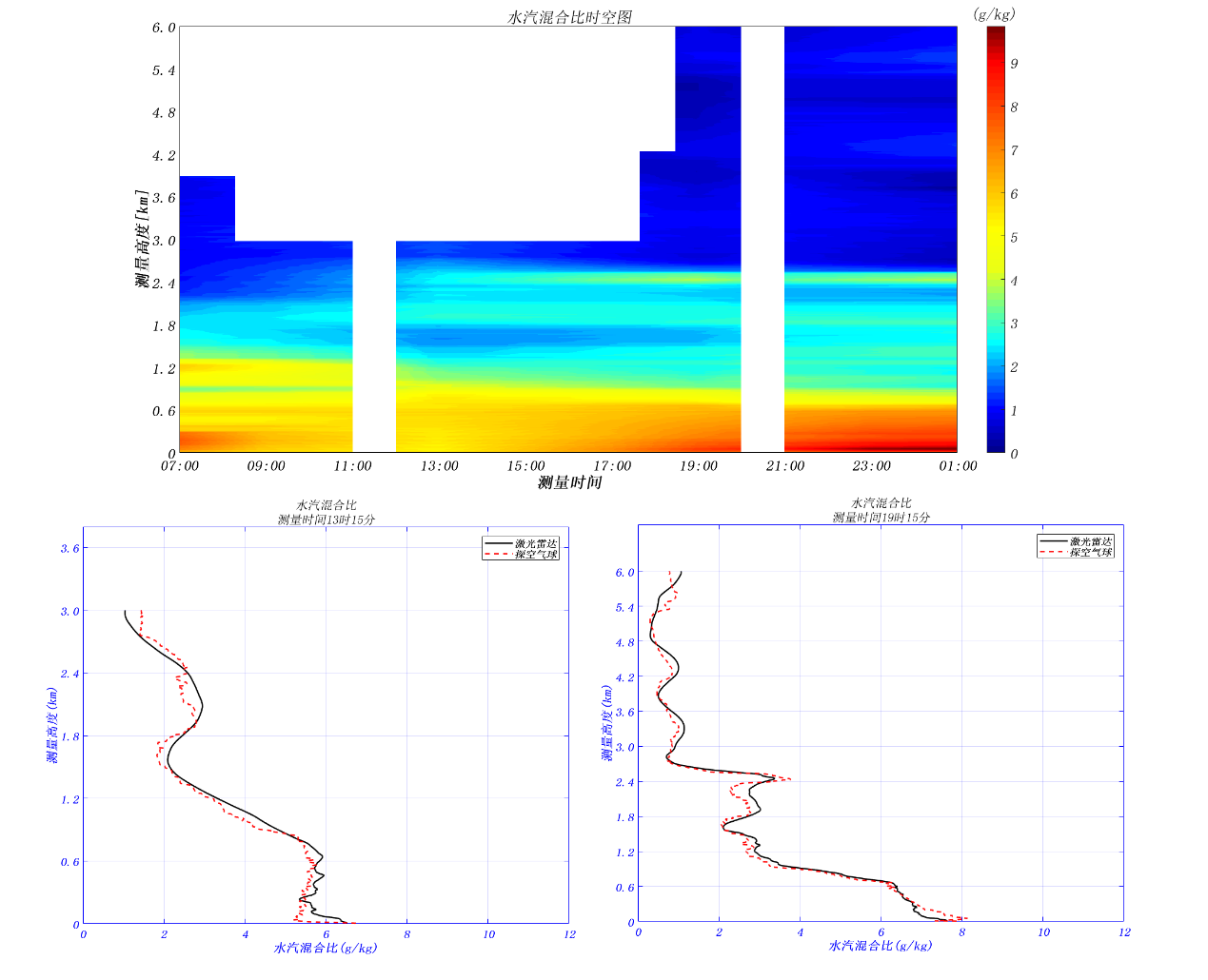

Atmospheric water vapor profile measurement results show:
