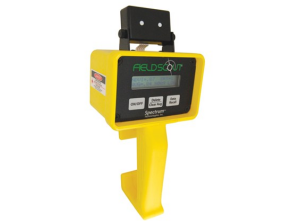

Handheld NDVI measuring instrument CM1000

发布时间:2024-05-17



Uses: Rational application of nitrogen fertilizer is an important means of increasing crop yields, but determining how plants can use nitrogen fertilizer most efficiently

Methods to determine the best time to apply fertilizer are expensive and time-consuming. The CM 1000 NDVI measuring instrument is normalized by measurement

Using the Vegetation Difference Index (NDVI) to obtain nitrogen utilization and nitrogen requirement data can help you quickly, timely and efficiently.To understand the required nitrogen fertilizer content of crops and accurately grasp the fertilization time.


Features:

· Fast and accurate measurement;

· No damage to the measured object;

· Own data storage;

· Can display the average value of multiple measurements;

· Automatic ambient light compensation;

· Light weight, handheld design;

· Can be connected with GPS;

· Independent operation without computer assistance.

Technical specifications:

Type of measurement

Plant leaves, lawn canopy

Measurement mode

Normalized Vegetation Difference Index (NDVI) was calculated based on reflected light at 660nm and 840nm wavelengths.

Light source requirement

Natural daylight; Artificial light source: 60Hz AC tungsten light source or DC halogen light source

Measured area

28.4 and 183 cm conical area

Measuring range

-1~1 NDVI (Normalized index)

Data storage

3250 data (without GPS/DGPS), 1350 data (with GPS/DGPS)

repeatability

±5% of the reading

weight

0.7 kg

Operating temperature

0~+40℃

Power supply

2 AAA alkaline batteries can be measured about 3000 times

Class of protection

Dust prevention





ORIGIN:USA
