Long-term soil respiration transparent static chamber Type JL-2203

发布时间：2024-12-18

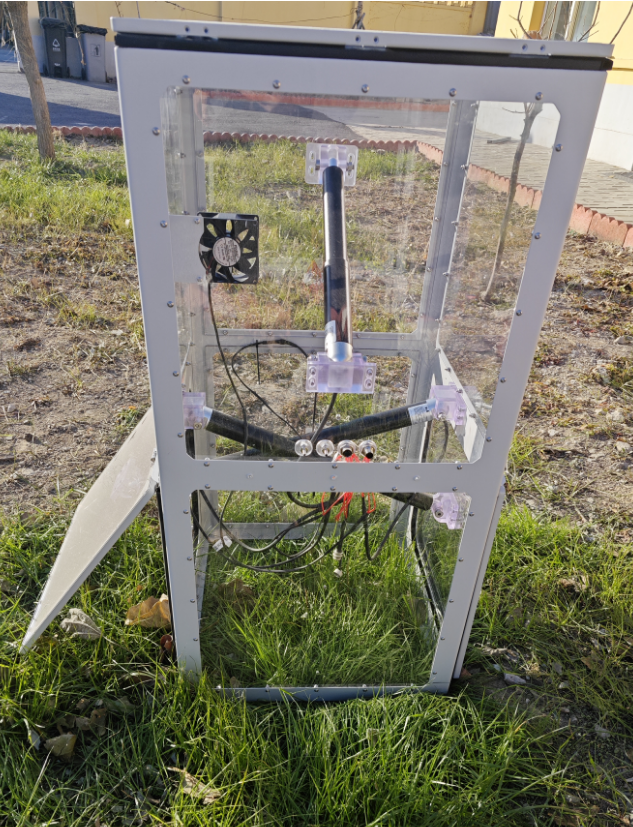

    Soil transparent breathing leaf chamber is an important part of the double-cycle soil breathing observation

system. Acrylic sheet material is used with a light transmittance of 90%. The effect of dark room can be realized

by pasting the transparent sheet material. The controllable automatic rotation opening and closing (upper

window 45°, side window 45°) adopts special electric push rod for pressing and sealing, which has strong

sustainability and weather resistance. The air mixing fan can quickly mix the gas in the blade room and speed up

the test process.

     Application: Measuring CO2,CH4,N2O,H2O and other greenhouse gas emissions in soil, can be connected to the

analyzer: can be connected to the PICARRO-G series analyzer, LGR analyzer and other gas analyzer.
